Using standalone applications¶

The VISR framework provides a number of standalone real-time rendering applications for some of its audio processing functionality.

If a component-aware installer is used (see Section Installation components), then the component “Standalone applications” has to be selected during installation.

The standalone applications are started as command line applications, and configured through a number of command line options or a configuration file.

Common options¶

All standalone applications provided with the VISR provide a common set of command line options:

–version or -v

Returns a short description of the tool and its version information.

–help or -h

Returns a list of supported command line options with brief descriptions.

–option-file <filename> or @<filename>

Pass a configuration file containing a set of command line options to the applications. This options allows to store and share complex sets of command line options, and to overcome potential command line length limitations.

A typical option file has the format

-i 2
-o 2
-f 48000
-c "/usr/share/visr/config/generic/stereo.xml"

where,by convention, one option is stored per line.

–sampling-frequency or -f

The sampling frequency to be used for rendering, as an integer value in Hz. Typically optional. If not given, a default value (e.g., 48000 Hz) will be used.

–period or -p

The period, or blocksize, or buffersize to be used by the audio interface.

In most cases, the period should be a power of 2, e.g., 64, 128, 256, 512, ..., 4096. Lower values mean lower audio latency, but typically higher system load and higher susceptibility to audio underruns.

Typically an optional argument. If not given, a default value (e.g., 1024) is used.

–audio-backend or -D

Specify the audio interface library to be used.

This option is mandatory.

The audio interfaces depend on the operating system and the configuration of the user’s system. The most common options are “PortAudio” (all platforms) and “Jack” (Linux and Mac OS X). Note that additional libraries (or backends) can be available for a specific platform, and new backends might be added in the future.

-audio-ifc-options

A string to provide additional options to the audio interface.

This is an optional argument, and its content is interface-specific.

By convention, the existing audio interfaces expect JSON (JavaScript Object Notation) strings for the backend-configuration.

To pass JSON strings, the whole string should be enclosed in single or double quotes, and the quotes required by JSON must be escaped with a backslash. For example, the option might be used in this way:

visr_renderer ... -audio-ifc-options='{ \"hostapi\": \"WASAPI\" }'

Section Interface-specific audio options below explains the options for the currently supported audio interfaces.

-audio-ifc-option-file

Provide a interface-specific option string within a file.

This can be used to avoid re-specifying complex options strings, to author them in a structured way, and to store and share them.

In addition, it avoids the quoting and escaping tricks needed on the command line. For example, the option shown above could be specified in a file portaudio_options.cfg as

{
  "hostapi": "WASAPI"
}

and passed as

visr_renderer ... -audio-ifc-option-file=portaudio_options.cfg

Note

The options –audio-ifc-options and –audio-ifc-option-file are mutually exclusive, that means other none or one of them can be provided.

VISR object-based loudspeaker renderer¶

These renderers facilitate object-based rendering to arbitrary loudspeaker setups. They use the VISR audio object model and the corresponding JSON format described in Section Predefined object-based rendering primitives and renderers.

Note that there are two binaries for loudspeaker rendering: visr_renderer and baseline_renderer. The provision of these separate binaries has technical reasons - mainly their dependency on a compatible and configured Python installation, as explained below.

The two binaries provided are:

visr_renderer: This is the full object-based renderer, including a powerful metadata adaptation engine for intelligent object-based rendering - the Metadapter - implemented in Python. This metadapter is integrated into the rendering binary as an optional part, and is used if the option –metadapter-config is specified. The binary itself, however, needs a Python istallation to start at all, irrespective whether this option is set.
baseline_renderer: This is the legacy object-based loudspeaker renderer. At the time being, it provides the same functionality as the visr_renderer, but without the optional integrated metadapter component. In this way, the binary is independent of a Python distribution on the user’s computer.

In general, we recommend to use visr_renderer if possible, and to use baseline_renderer on systems where the Python features of the VISR framework are not available.

The command line arguments supported by the visr_renderer application are:

$> visr_renderer.exe --help
-h [ --help ]                   Show help and usage information.
-v [ --version ]                Display version information.
--option-file arg               Load options from a file. Can also be used
                                with syntax "@<filename>".
-D [ --audio-backend ] arg      The audio backend.
-f [ --sampling-frequency ] arg Sampling frequency [Hz]
-p [ --period ] arg             Period (blocklength) [Number of samples per
                                audio block]
-c [ --array-config ] arg       Loudspeaker array configuration file
-i [ --input-channels ] arg     Number of input channels for audio object
                                signal
-o [ --output-channels ] arg    Number of audio output channels
-e [ --object-eq-sections ] arg Number of eq (biquad) section processed for
                                each object signal.
--reverb-config arg             JSON string to configure the object-based
                                reverberation part, empty string (default) to
                                disable reverb.
--tracking arg                  Enable adaptation of the panning using visual
                                tracking. Accepts the position of the tracker
                                in JSON format"{ "port": <UDP port number>,
                                "position": {"x": <x in m>, "y": <y im m>,
                                "z": <z in m> }, "rotation": { "rotX": rX,
                                "rotY": rY, "rotZ": rZ } }" .
-r [ --scene-port ] arg         UDP port for receiving object metadata
-m [ --metadapter-config ] arg  Metadapter configuration file. Requires a
                                build with Python support. If empty, no
                                metadata adaptation is performed.
--low-frequency-panning         Activates frequency-dependent panning gains
                                and normalisation
--audio-ifc-options arg         Audio interface optional configuration
--audio-ifc-option-file arg     Audio interface optional configuration file

The arguments for the baseline_renderer application are identical, except that the --metadapter-config option is not supported as explained above.

--audio-backend or -D

The audio interface library to be used. See section :ref:using_standalone_renderers_common_options.

--audio-ifc-options:

Audio-interface specific options, section :ref:using_standalone_renderers_common_options.

--audio-ifc-option-file:

Audio-interface specific options, section :ref:using_standalone_renderers_common_options.

--sampling-frequency or -f:

Sampling frequency in Hz. Default: 48000 Hz. See section :ref:using_standalone_renderers_common_options.

--period or -p:

The number of samples processed in one iteration of the renderer. Should be a power of 2 (64,128,...,4096,...) . Default: 1024 samples. See section :ref:using_standalone_renderers_common_options.

--array-config or -c:

File path to the loudspeaker configuration file. Path might be relative to the current working directory. Mandatory argument. The XML file format is described below in Section Loudspeaker configuration file format.

--input-channels or -i:

The number of audio input channels. This corresponds to the number of single-waveform objects the renderer will process. Mandatory argument. A (case-insensitive) file extension of c .xml triggers the use of the XML format for parsing.

--output-channels or -o:

The number of output channels the renderer will put write to. If not given, the number of output channels is determined from the largest logical channel number in the array configuration.

--object-eq-sections:

The number of EQs (biquad sections) that can be specified for each object audio signal.

Default value: o, which deactivate EQ filtering for objects.

--low-frequency-panning:

Switches the loudspeaker panning between standard VBAP and a dual-frequency approach with separate low- and high-frequency panning rules.

Admissible values are true and false. The default value is false, corresponding to the standard VBAP algorithm.

--reverb-config:

A set of options for the integrated reverberation engine for the RSAO (PointsourceWithReverb) object (see section Object-Based Reverberation). To be passed as a JSON string. The supported options are:

numReverbObjects:

The number of RSAO objects that can be rendered simultaneously. These objects may have arbitrary object ids, and they are automatically allocated to the computational resources avalable.

To be provided as a nonnegative integer number The default value is 0, which means that the reverberation rendering is effectively disabled.

lateReverbFilterLength:

Specify the length of the late reverberation filters, in seconds.

Provided as a floating-point value, in seconds. Default value is zero, which results in the shortest reverb filter length that can be processed by the renderer, typically one sample.

lateReverbDecorrelationFilters:

Specifies a multichannel WAV file containing a set of decorrelation filters, one per loudspeaker output. The number of channels must be equal or greater than the number of loudspeakers, channels that exceed the number of loudspeakers are not used.

To be provided as a full file path. The default value is empty, which means that zero-valued filters are used, which effectively disables the late reverb.

discreteReflectionsPerObject:

The maximum number of discrete reflections that can be rendered for a single RSAO object.

Given as a nonnegative integer number. The default value is 0, which means that no discrete reflections are supported.

maxDiscreteReflectionDelay:

The maximum discrete reflection delay supported. This allows a for tradeoff between the computational resources, i.e., memory required by the renderer and a realistic upper limit for discrete reflection delays.

To be provided as a floating-point number in seconds. Default value is 1.0, i.e., one second.

lateReverbFilterUpdatesPerPeriod

Optional argument for limiting the number of filter updates in realtime rendering. This is to avoid processing load peaks, which might lead to audio underruns, if multiple RSAO objects are changed simultaneously. The argument specifies the maximum number of objects for whom the late reverb filter is calculated withon one period (audio buffer). If there are more pending changes than thix number, the updates are spread over multiple periods. This is a tradeoff between peak load and the timing accuracy and synchronity of late reverb updates.

Optional value, default value is 1, meaning at most one update per period

An example configuration is:

--reverb-config='{ \"numReverbObjects\": 5, \"lateReverbFilterLength\": 4.0,
           \"lateReverbDecorrelationFilters\": "/home/af5u13/tmp/decorr.wav\",
           \"discreteReflectionsPerObject\": 10 }'

--tracking

Activates the listener-tracked VBAP reproduction, which adjust both the VBAP gains as well as the final loudspeaker gains and delays according to the listener position. It takes a non-empty string argument containing a JSON message of the format: { "port": <UDP port number>, "position": {"x": <x in m>, "y": <y im m>, "z": <z in m> }, "rotation": { "rotX": rX, "rotY": rY, "rotZ": rZ } }". The values are defined as follows:

ID	Description	Unit	Default
port	UDP port number	unsigned int	8888
position.x	x position of the tracker	m	2.08
position.y	y position of the tracker	m	0.0
position.z	z position of the tracker	m	0.0
rotation.rotX	rotation the tracker about the x axis, i.e., y-z plane	degree	0.0
rotation.rotY	rotation the tracker about the y axis, i.e., z-x plane	degree	0.0
rotation.rotZ	rotation the tracker about the z axis, i.e., x-y plane	degree	180

Note

The option parsing for --tracking not supported yet, default values are used invariably. To activate tracking, you need to specify the --tracking option with an arbitrary parameter (even --tracking=false would activate the tracking.

--scene-port

The UDP network port which receives the scene data in the VISR JSON object format.

--metadapter-config

An optional Metadapter configuration file in XML format, provided as a full path to the file. If specified, the received metadata are passed through a sequence of metadata adaptation steps that are specified in the configuration file. If not given., metadata adaptation is not performed, and objects are directly passed to the audio renderer.

This option is not supported by the baseline_renderer application.

Loudspeaker configuration file format¶

The loudspeaker configuration has to be specified in an XML file. It is used primarily for the loudspeaker renderers.

An example is given below.

<panningConfiguration>
  <loudspeaker id="M+000" channel="1" eq="highpass">
    <cart x="1.0" y="0.0" z="0"/>
  </loudspeaker>
  <loudspeaker id="M-030" channel="2" eq="highpass">
    <polar az="-30.0" el="0.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="M+030" channel="3" eq="highpass">
    <polar az="30.0" el="0.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="M-110" channel="4" eq="highpass">
    <polar az="-110.0" el="0.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="M+110" channel="5" eq="highpass">
    <polar az="110.0" el="0.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="U-030" channel="6" eq="highpass">
    <polar az="-30.0" el="30.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="U+030" channel="7" eq="highpass">
    <polar az="30.0" el="30.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="U-110" channel="8" eq="highpass">
    <polar az="-110.0" el="30.0" r="1.0"/>
  </loudspeaker>
  <loudspeaker id="U+110" channel="9" eq="highpass">
    <polar az="110.0" el="30.0" r="1.0"/>
  </loudspeaker>
  <virtualspeaker id="VoS">
    <polar az="0.0" el="-90.0" r="1.0"/>
    <route lspId="M+000" gainDB="-13.9794"/>
    <route lspId="M+030" gainDB="-13.9794"/>
    <route lspId="M-030" gainDB="-13.9794"/>
    <route lspId="M+110" gainDB="-13.9794"/>
    <route lspId="M-110" gainDB="-13.9794"/>
  </virtualspeaker>
  <triplet l1="VoS" l2="M+110" l3="M-110"/>
  <triplet l1="M-030" l2="VoS" l3="M-110"/>
  <triplet l1="M-030" l2="VoS" l3="M+000"/>
  <triplet l1="M-030" l2="U-030" l3="M+000"/>
  <triplet l1="M+030" l2="VoS" l3="M+000"/>
  <triplet l1="M+030" l2="VoS" l3="M+110"/>
  <triplet l1="U+030" l2="U-030" l3="M+000"/>
  <triplet l1="U+030" l2="M+030" l3="M+000"/>
  <triplet l1="U-110" l2="M-030" l3="U-030"/>
  <triplet l1="U-110" l2="M-030" l3="M-110"/>
  <triplet l1="U+110" l2="U-110" l3="M-110"/>
  <triplet l1="U+110" l2="M+110" l3="M-110"/>
  <triplet l1="U+030" l2="U-110" l3="U-030"/>
  <triplet l1="U+030" l2="U+110" l3="U-110"/>
  <triplet l1="U+030" l2="U+110" l3="M+110"/>
  <triplet l1="U+030" l2="M+030" l3="M+110"/>
  <subwoofer assignedLoudspeakers="M+000, M-030, M+030, M-110, M+110, U-030, U+030, U-110, U+110"
          channel="10" delay="0" eq="lowpass" gainDB="0"
          weights="1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0"
          />
  <outputEqConfiguration numberOfBiquads="1" type="iir">
      <filterSpec name="lowpass">
         <biquad a1="-1.9688283" a2="0.96907117" b0="6.0729856e-05" b1="0.00012145971" b2="6.0729856e-05"/>
      </filterSpec>
      <filterSpec name="highpass">
         <biquad a1="-1.9688283" a2="0.96907117" b0="-0.98447486" b1="1.9689497" b2="-0.98447486"/>
      </filterSpec>
  </outputEqConfiguration>
</panningConfiguration>

Format description¶

The root node of the XML file is <panningConfiguration>. This root element supports the folloring optional attributes: * isInfinite Whether the loudspeakers are regardes as point sources located on the unit sphere (false) or as plane waves, corresponding to an infinite distance (true). The default value is false. * dimension Whether the setup is considered as a 2-dimensional configuration (value 2) or as three-dimensional (3, thedefault). In the 2D case, the array is considered in the x-y plane , and the z or el attributes of the loudspeaker positions are not evaluated. In this case, the triplet specifications consist of two indices only (technically they are pairs, not triplets).

Within the <panningConfiguration> root element, the following elements are supported:

<loudspeaker>

Represents a reproduction loudspeaker. The position is encoded either in a <cart> node representing the cartesian coordinates in the x, y and z attributes (floating point values in meter), or a <polar> node with the attributes az and el (azimuth and elevation, both in degree) and r (radius, in meter).

The <loudspeaker> nodes allows for number of attributes:

id A mandatory, non-empty string identification for the loudspeaker, which must be unique across all <loudspeaker> and <virtualspeaker> (see below) elements. Permitted are alpha-numeric characters, numbers, and the characters “@&()+/:_-”. ID strings are case-sensitive.
channel The output channel number (sound card channel) for this loudspeaker. Logical channel indices start from 1. Each channel must be assigned at most once over the set of all loudspeaker and subwoofers of the setup..
gainDB or gain Additional gain adjustment for this loudspeaker, either in linear scale or in dB (floating-point values. The default value is 1.0 or 0 dB. gainDB or gain are mutually exclusive.
delay Delay adjustment to be applied to this loudspeaker as a floating-point value in seconds. The default value is 0.0).
eq An optional output equalisation filter to be applied for this loudspeaker. Specified as a non-empty string that needs to match an filterSpec element in the outputEqConfiguration element (see below). If not given, no EQ is applied to for this loudspeaker.

<virtualspeaker>

An additional vertex added to the triangulation that does not correspond to a physical loudspeaker. Consist of a numerical id attribute and a position specified either as a <cart> or a <polar> node (see <loudspeaker> specification).

The <virtualspeaker> node provides the following configuration options:

A mandatory, nonempty and unique attribute id that follows the same rules as for the <loudspeaker> elements.
A number of route sub-elements that specify how the energy from this virtual loudspeaker is routed to real loudspeakers. The route element has the following attributes: * lspId: The ID of an existing real loudspeaker. * gainDB: A scaling factor with which the gain of the virtual loudspeaker is distributed to the real loudspeaker.

In the above example, the routing specification is given by
```
 <virtualspeaker id="VoS">
  <polar az="0.0" el="-90.0" r="1.0"/>
  <route lspId="M+000" gainDB="-13.9794"/>
  <route lspId="M+030" gainDB="-13.9794"/>
  <route lspId="M-030" gainDB="-13.9794"/>
  <route lspId="M+110" gainDB="-13.9794"/>
  <route lspId="M-110" gainDB="-13.9794"/>
</virtualspeaker>
```
That means that the energy of the virtual speaker "vos" is routed to five surrounding speakers, with a scaling factor of 13.97 dB each.

<subwoofer> Specify a subwoofer channel. In the current implementation, the loudspeaker are weighted and mixed into an arbitray number of subwoofer channels. The attributes are:

assignedLoudspeakers The loudspeaker signals (given as a sequence of logical loudspeaker IDs) that contribute to the subwoofer signals. Given as comma-separated list of loudspeaker index or loudspeaker ranges. Index sequences are similar to Matlab array definitions, except that thes commas separating the parts of the sequence are compulsory.

Complex example:
assignedLoudspeakers = "1, 3,4,5:7, 2, 8:-3:1"
weights Optional weights (linear scale) that scale the contributions of the assigned speakers to the subwoofer signal. Given as a sequence of comma-separated linear-scale gain values, Matlab ranges are also allowed. The number of elements must match the assignedLoudspeakers index list. Optional value, the default option assigns 1.0 for all assigned loudspeakers. Example: “0:0.2:1.0, 1, 1, 1:-0.2:0”.

gainDB or gain Additional gain adjustment for this subwoofer, either in linear scale or in dB (floating-point valus, default 1.0 / 0 dB ). Applied on top of the weight attributes to the summed subwoofer signal. See the <loudspeaker> specification.

delay Delay adjustment for this (floating-point value in seconds, default 0.0). See the <loudspeaker> specification.

<triplet>

Loudspeaker triplet specified by the attributes l1, l2, and l3. The values of l1, l2, and l3 must correspond to IDs of existing real or virtual loudspeakers. In case of a 2D setup, only l1 and l2 are evaluated.

outputEqConfiguration

This optional element must occur at most once. It provides a global specification for equalisation filters for loudspeakers and subwoofers.

<outputEqConfiguration  type="iir" numberOfBiquads="1">
  <filterSpec name="lowpass">
    <biquad a1="-1.9688283" a2="0.96907117" b0="6.0729856e-05" b1="0.00012145971" b2="6.0729856e-05"/>
  </filterSpec>
  <filterSpec name="highpass">
    <biquad a1="-1.9688283" a2="0.96907117" b0="-0.98447486" b1="1.9689497" b2="-0.98447486"/>
  </filterSpec>
</outputEqConfiguration>

The attributes are:

type: The type of the output filters. At the moment, only IIR filters provide as second-order sections (biquads) are supported. Thus, the value "iir" must be set.
numberOfBiquads: This value is specific to the "iir" filter type.

The filters are described in filterSpec elements. These are identifed by a name attribute, which must be an non-empty string unique across all filterSpec elements. For the type iir, a filterSpec element consists of at most numberOfBiquad nodes of type biquad, which represent the coefficients of one second-order IIR (biquad) section. This is done through the attributes a1, a2, b0, b1, b2 that represent the coefficients of the normalised transfer function

\[H(z) = \frac{ b_0 + b_1 z^{-1} + b_{2}z^{-2} }{1 + a_1 z^{-1} + a_{2}z^{-2}}\]

Interface-specific audio options¶

This section described the audio-interface-specific options that can be passed through the --audio-ifc-options or --audio-ifc-option-file arguments.

PortAudio interface¶

The interface-specific options for the PortAudio interface are to be provided as a JSON file, for example:

{
 "sampleformat": "...",
 "interleaved": "...",
 "hostapi" : "..."
}

Note

When used on the command line using the --audio-ifc-options argument, apply the quotation and escaping as described in Section Common options.

The following options are supported for the PortAudio interface:

sampleformat

Specifies the PortAudio sample format. Possible values are:

signedInt8Bit

unsignedInt8Bit

signedInt16Bit

unsignedInt16Bit

signedInt24Bit

unsignedInt24Bit

signedInt32Bit

unsignedInt32Bit

float32Bit .

interleaved:

Enable/disable interleaved mode, possible values are true, false.

hostapi:

Used to specify PortAudio backend audio interface. Possible values are:

default: This activates the default backend

WASAPI : Supported OS: Windows.

ASIO : Supported OS: Windows.

WDMKS: Supported OS: Windows.

DirectSound : Supported OS: Windows.

CoreAudio : Supported OS: MacOs.

ALSA : Supported OS: Linux.

JACK : Supported OSs: MacOs, Linux.

PortAudio aupports a number of other APIs. However, they are outdated or refer to obsolete platforms and therefore should not be used: - SoundManager (MacOs) - OSS (Linux) - AL - BeOS - AudioScienceHPI (Linux)

This configuration is an example of usage of PortAudio, with Jack audio interface as backend.

{
  "sampleformat": "float32Bit",
  "interleaved": "false",
  "hostapi" : "JACK"
}

Jack audio interface¶

The following options can be provided when using Jack as our top level component’s Audio Interface:

clientname:: Jack Client name for our top level component.
servername:: Jack Server name. If not provided, the default Jack server is used.
autoconnect:: Globally enable/disable the automatic connection of ports. Admissible values are true and false. This setting can be overridden specifically for capture and playback ports in the port configuration section described below.

portconfig: Subset of options regarding the configuration and connection of Jack Ports, see following section.

Port Configuration¶

The port configuration section allows to individually set properties for the capture, i.e., input, and the playback, i.e., output, ports of an application.

capture: Specifies that the following options regard the top level component’s capture ports only

autoconnect : Enable/disable auto connection to an external jack client’s input ports, possible values are true, false

port: Jack ports specification

basename: Common name for all top level component’s capture ports

indices: list of port numbers to append to top level component’s capture port name. It is possible to use Matlab’s colon operator to express a list of numbers in a compact fashion (es.”0:4” means appending numbers 0 to 3 to port names)

externalport: Specification of an external jack client to connect to if autoconnect is enabled.

client: Name of an external jack client to use as input for our top level component (es. “system”)

portname: Common name for all external jack client input ports

indices: List of port numbers that together with :code:` portname` describe existing external jack client input ports. It is possible to use Matlab’s colon operator to express a list of numbers.

playback: Specifies that the following options regard the top level component’s playback ports only.

autoconnect : Enable/disable auto connection to an external jack client’s output ports, possible values are true, false

port: Jack ports specification

basename: Common name for all top level component’s playback ports

indices: list of port numbers to append to top level component’s playback port name. It is possible to use Matlab’s colon operator to express a list of numbers in a compact fashion (es.”0:4” means appending numbers 0 to 4 to port names)

externalport: Specification of an external jack client to connect to if autoconnect is enabled.

client: Name of an external jack client to use as output for our top level component (es. “system”)

portname: Common name for all external jack client output ports

indices: List of port numbers that together with :code:` portname` describe existing external jack client output ports. It is possible to use Matlab’s colon operator to express a list of numbers.

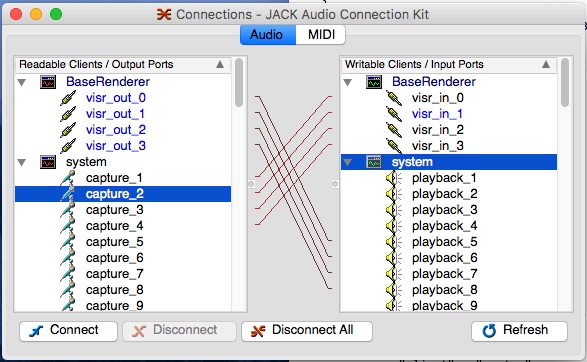

Simple Example¶

This configuration example shows how to auto-connect the Jack input and output ports of an application to the default jack client (system), specifying which range of ports to connect.

{
  "clientname": "BaseRenderer",
  "autoconnect" : "true",
  "portconfig":
  {
    "capture":
    {
      "port":
      [{ "externalport" : {"indices": "1:4"} }]
    },
    "playback":
    {
      "port":
      [{ "externalport" : {"indices": "5:8"} }]
    }
  }
}

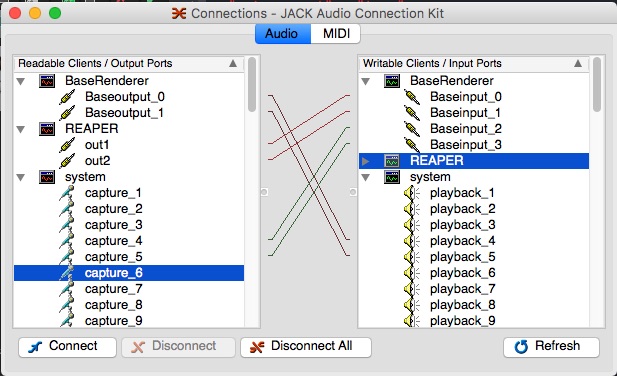

Jack audio complex configuration example.

Complex Example¶

Follow a more complex example where auto-connection of ports is performed specifying different jack clients and the ranges of ports to be connected are described both for the top level component and for external clients.

{
  "clientname": "VisrRenderer",
  "servername": "",
  "autoconnect" : "true",
  "portconfig":
  {
    "capture":
    {
      "autoconnect" : "true",
      "port":
      [
        {
         "basename" : "Baseinput_" ,
         "indices": "0:1",
         "externalport" :
          {
            "client" : "REAPER",
            "portname": "out",
            "indices": "1:2"
          }
        },
        {
         "basename" : "Baseinput_" ,
         "indices": "2:3",
         "externalport" :
          {
            "indices": "4:5"
          }
         }
      ]
    },
    "playback":
    {
      "autoconnect" : "true",
      "port":
      [{
        "basename" : "Baseoutput_" ,
        "indices": "0:1",
        "externalport" :
         {
          "client" : "system",
          "portname": "playback_",
          "indices": "4:5"
         }
       }]
    }
  }
}

Jack audio complex configuration example.

Using standalone applications¶

Common options¶

VISR object-based loudspeaker renderer¶

Loudspeaker configuration file format¶

Format description¶

Interface-specific audio options¶

PortAudio interface¶

Jack audio interface¶

Port Configuration¶

Simple Example¶

Complex Example¶

Table Of Contents

Previous topic

Next topic

This Page
