visr::AudioOutputBase Class Reference

#include <audio_output.hpp>

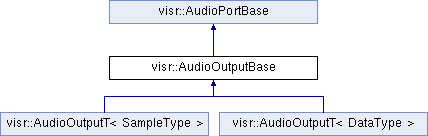

Inheritance diagram for visr::AudioOutputBase:

Public Member Functions
	AudioOutputBase (char const *name, Component &container, AudioSampleType::Id typeId, std::size_t width)
virtual	~AudioOutputBase () override
Public Member Functions inherited from visr::AudioPortBase
	AudioPortBase (char const *name, Component &container, AudioSampleType::Id sampleType, PortBase::Direction direction)
	AudioPortBase (char const *name, Component &container, AudioSampleType::Id sampleType, PortBase::Direction direction, std::size_t width)
virtual	~AudioPortBase ()
void	setWidth (std::size_t newWidth)
std::size_t	width () const noexcept
std::size_t	alignmentBytes () noexcept
std::size_t	alignmentSamples () noexcept
std::size_t	channelStrideSamples () const noexcept
std::size_t	channelStrideBytes () const noexcept
AudioSampleType::Id	sampleType () const noexcept
std::size_t	sampleSize () const noexcept
impl::AudioPortBaseImplementation &	implementation ()
impl::AudioPortBaseImplementation const &	implementation () const

Additional Inherited Members
Protected Member Functions inherited from visr::AudioPortBase
void *	basePointer ()
void const *	basePointer () const

Detailed Description

Common base class for audio output ports, not specific to a sample type This class contains the common implementation of the templated concrete port types.

Constructor & Destructor Documentation

AudioOutputBase()

visr::AudioOutputBase::AudioOutputBase	(	char const *	name,
		Component &	container,
		AudioSampleType::Id	typeId,
		std::size_t	width
	)

Constructor.

Parameters

name	The name of the port as a null-terminated character array. Must be unique among the audio ports of the containing components.
container	The containing component (atomic or composite)
typeId	The sample type id of the contained component.
width	The width of the port, i.e., the number of single audio channels provided.

~AudioOutputBase()

visr::AudioOutputBase::~AudioOutputBase ( )

overridevirtualdefault

Desctructor (virtual) Virtual because the base class destructor is also virtual.

---

The documentation for this class was generated from the following files:

• C:/Local/dev/gitlab-runner/builds/a913a013/0/s3a/VISR/src/libvisr/audio_output.hpp
• C:/Local/dev/gitlab-runner/builds/a913a013/0/s3a/VISR/src/libvisr/audio_output.cpp
